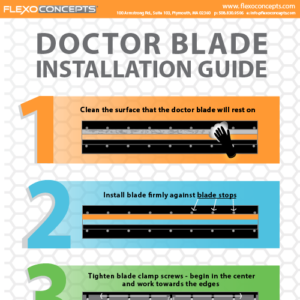

Back to the basics with this doctor blade installation and best practice infographic, created by Flexo Concepts. This infographic is a simple 3-step guide to proper TruPoint doctor blade installation in a chambered ink system. We also offer helpful insight on the ideal blade orientation and blade pressure to prolong doctor blade life and ensure effective ink metering.

Complete the form to download this infographic – with this download, you will also have an option at the bottom of the graphic to print the installation guide on standard letter size or poster size paper. This graphic is a great resource to print and post by your press operators to facilitate accurate doctor blade installations.

doctor blade installation infographic
