High Performance Doctor Blades

A doctor blade is a thin, flexible strip used in printing and coating processes to remove excess ink or coating from a roller or cylinder surface. In flexographic printing, the doctor blade rides against the anilox roll and meters the correct amount of ink so that only the volume held in the engraved cells transfers to the plate. That metering step is what makes print density repeatable from the first impression to the last. Doctor blades are available in steel and in polymer materials. Steel blades cut and score the anilox roll as they wear, and their edges are sharp enough to be a handling hazard. Polymer doctor blades cannot damage the anilox surface, are safe to handle without gloves, and hold a clean metering edge far longer. TruPoint polymer doctor blades from Flexo Concepts are engineered for printing, coating, and continuous manufacturing applications.

In flexographic printing, a doctor blade meters ink from the anilox roll by wiping away the excess ink that sits on the roll surface, leaving only the ink held inside the engraved cells. That controlled volume is what transfers to the printing plate and then to the substrate, which is how the press holds consistent print density and color from job to job. A correctly set blade also prevents ink flooding, reduces waste, and keeps contamination off the anilox roll surface. Blade pressure matters as much as the blade itself: the target is kiss contact, just enough load to wipe the roll clean without deflecting the blade or scrubbing the cells. Too much pressure accelerates wear, drives up anilox damage, and shortens blade life. Too little lets ink ride over the surface and shows up as density variation and dirty print.

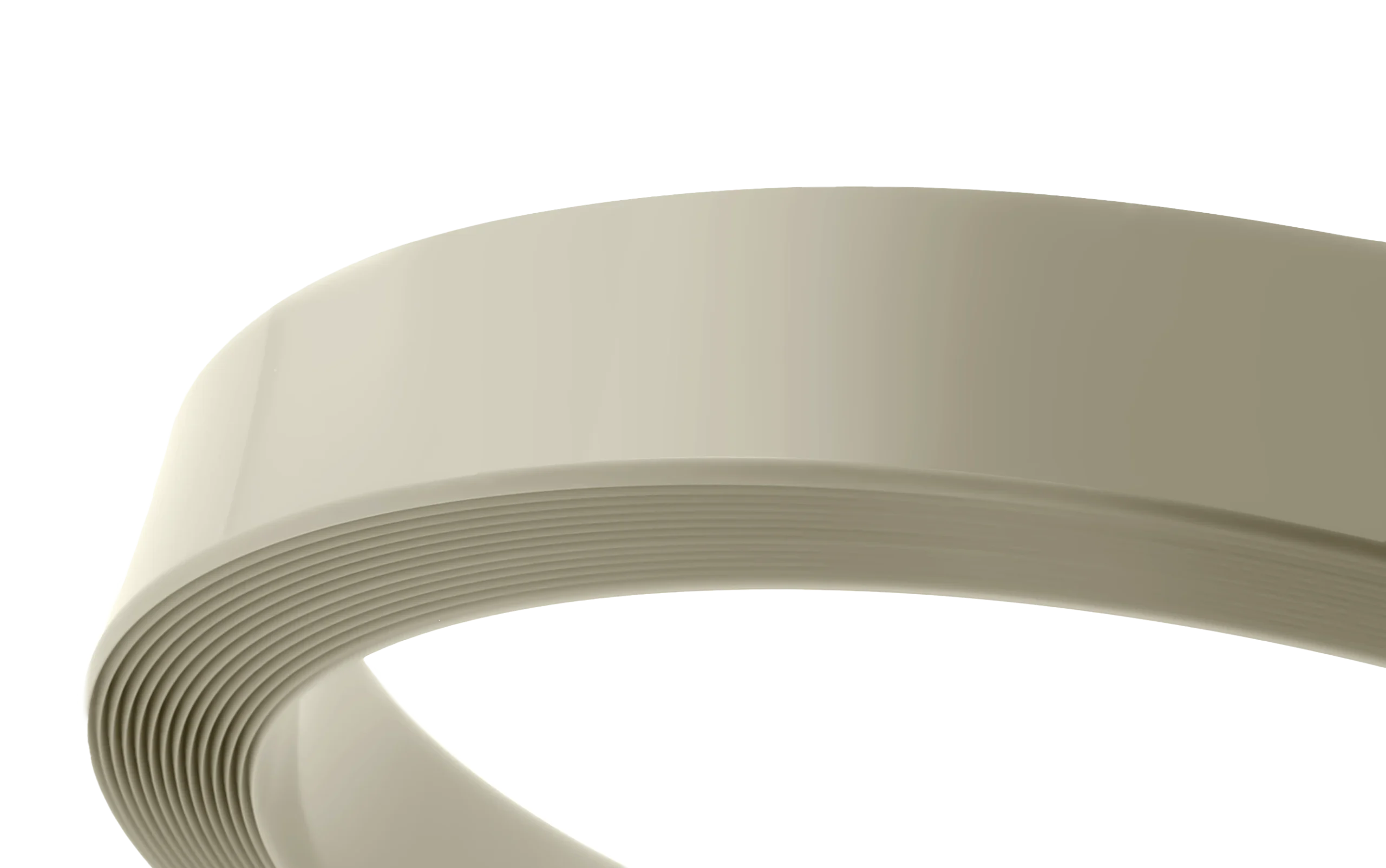

Polymer doctor blades are doctor blades manufactured from engineered polymer materials rather than steel. They offer several advantages over steel blades: they cannot score or damage anilox rolls, they eliminate the sharp-edge safety hazards that come with handling steel, they resist UV inks and cleaning solvents, and they typically last three to four times longer than steel. Because a polymer blade wears rather than fractures, the metering edge stays smooth as it breaks in, so print quality holds steady through the run instead of degrading in steps. The material also runs cooler against the roll, which matters on high-speed and high-temperature work. TruPoint polymer doctor blades from Flexo Concepts are used by packaging converters, label printers, and corrugated board printers worldwide, with different formulations matched to the ink system, press speed, and anilox specification of each application.

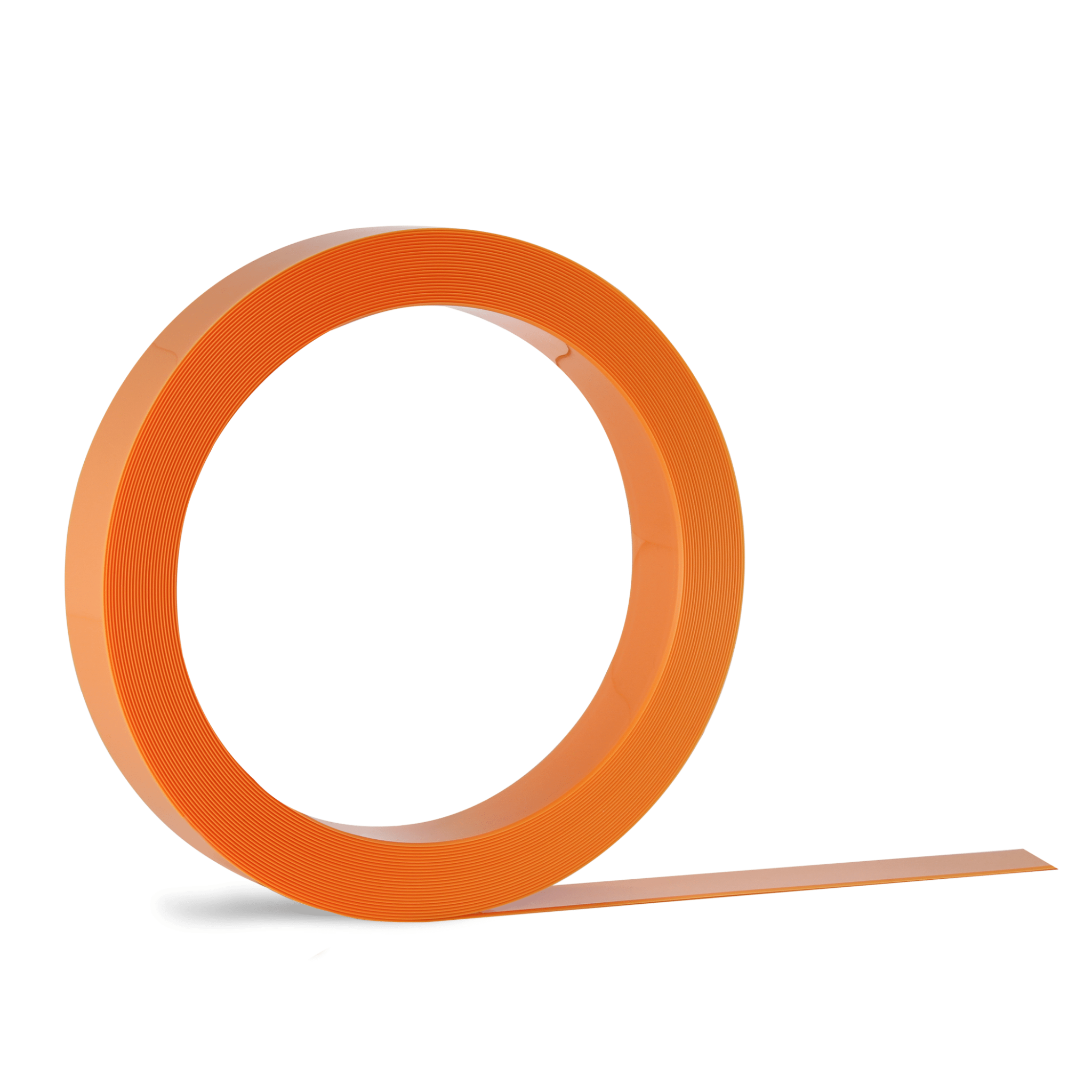

Doctor blade lifespan varies by material, application, and press conditions. Steel blades typically last four to eight hours in production. Polymer doctor blades, such as TruPoint Orange, typically last three to four times longer, often twelve to twenty-four hours or more per blade. The largest single factor is blade pressure. Running at kiss contact, the lightest load that still wipes the roll clean, extends life substantially, while over-pressuring a blade wears the metering edge in a fraction of the time and damages the anilox roll along with it. Ink condition is the second factor: clean ink at the correct viscosity carries fewer abrasive particles across the edge. A well-maintained anilox roll surface matters too, since a scored or plugged roll grinds at the blade. Tracking actual blade life per press position is the fastest way to find which of these is costing you changeovers.

In a chamber doctor blade system, the metering blade sits on the leading side of the chamber and controls ink volume by wiping excess ink from the anilox roll cells. The containment blade sits on the trailing side and seals the chamber so ink cannot leak out the back. The two do different jobs and see different loads: the metering blade does the precision work and takes the wear, while the containment blade needs to hold a consistent seal across the full width without dragging. Both blades work together to ensure efficient ink metering and minimal waste, and a worn containment blade shows up as leaking and misting rather than as print defects. Polymer blades are commonly used in both positions because they protect the anilox roll and are safe to change. TruPoint Polyester is the containment blade in the TruPoint line.

The term doctor blade comes from the verb to doctor, meaning to repair, adjust, or treat. In early printing and papermaking, the blade was used to doctor, or correct, the ink or coating application on rollers before it reached the material being printed. The name stuck, and it has persisted across the printing, paper, and coating industries to describe any blade that meters or removes material from a moving roll or cylinder surface. You will see the same component called a metering blade, a wiping blade, or simply a blade depending on the industry and the region, and in gravure printing the doctor blade wipes the engraved cylinder directly rather than an anilox roll. The function is the same in every case: control how much ink or coating stays on the roll, and remove everything that should not be there.
