Doctor Blades For Roll Doctoring and Cleaning

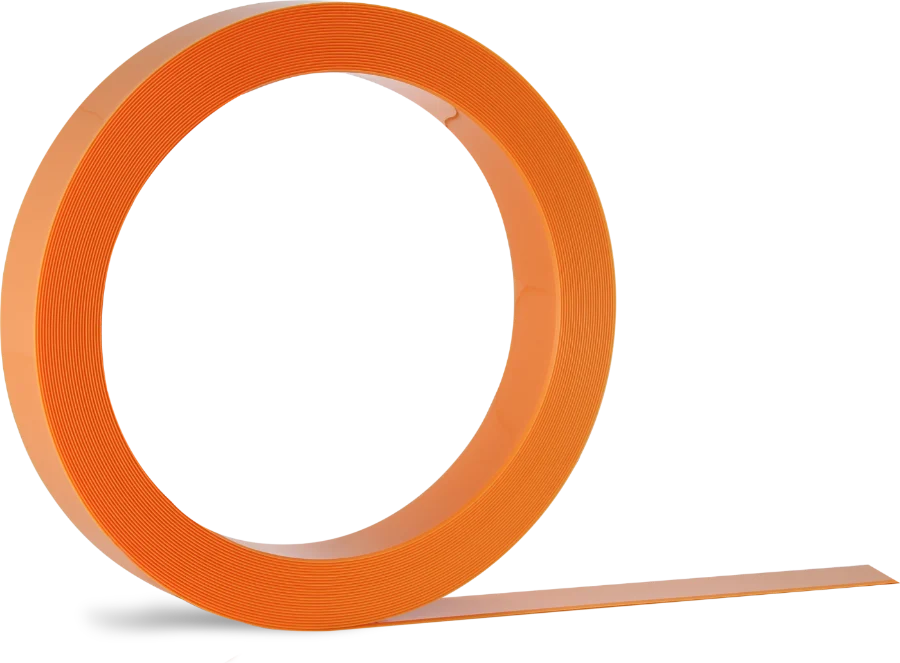

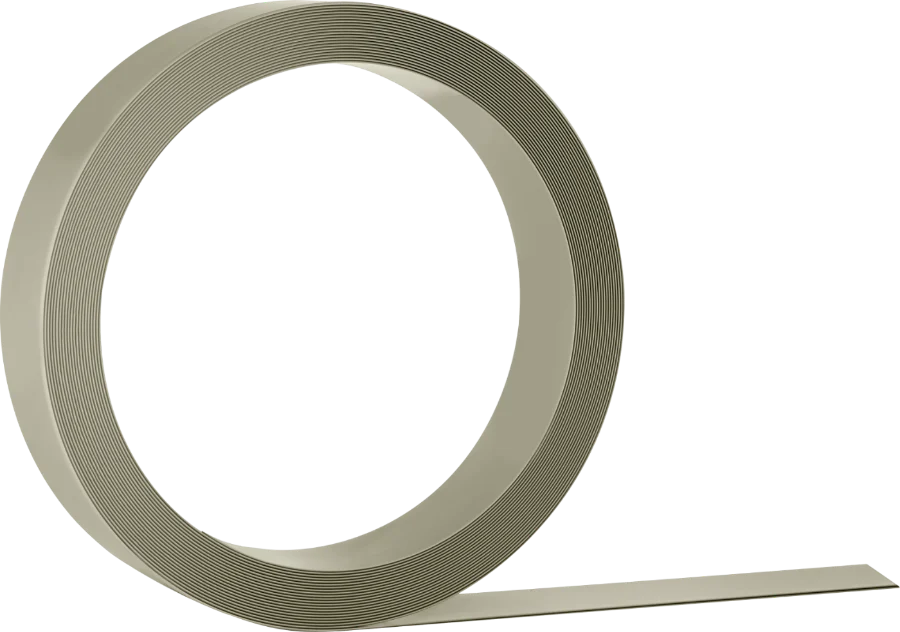

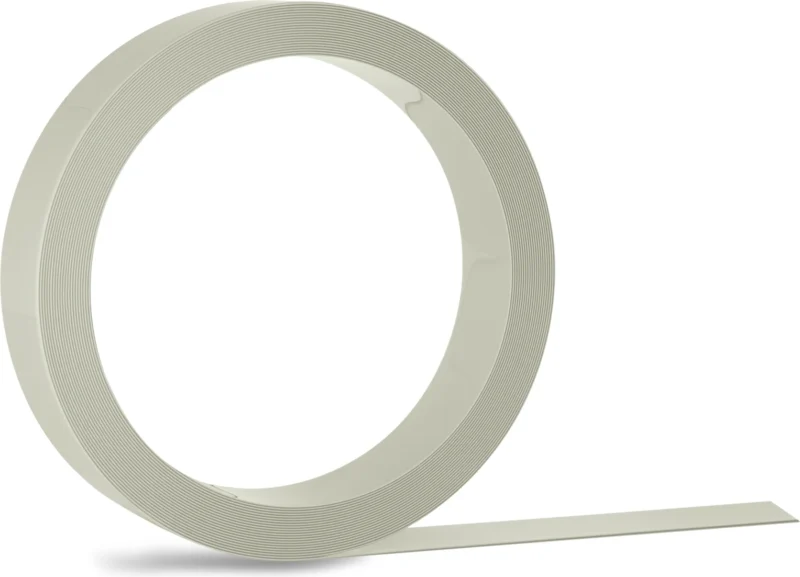

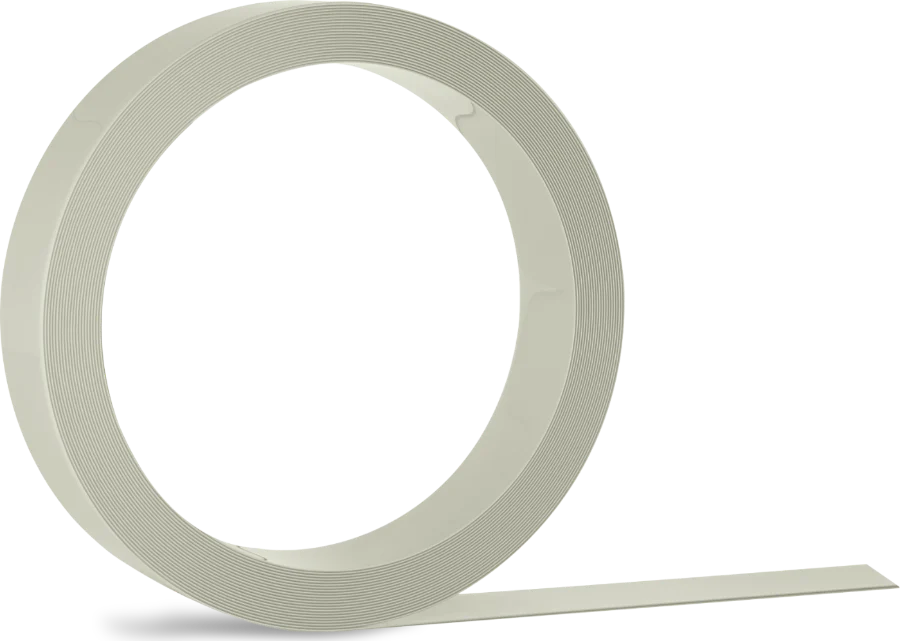

TruPoint polymer doctor blades reduce laceration risk because they do not develop the razor-sharp burrs that steel blades form as they wear. That makes handling, cutting, and installing a blade considerably safer, and it lowers the chance of a recordable injury during routine blade changes. Because the material is non-metallic, a TruPoint blade will not shed steel slivers into the ink system, onto the substrate, or into the press frame, so there is no metal contamination to chase down and no risk of a fragment reaching finished work. Blades ship in rolls or cut to length, so a pressroom can prepare only what a job needs instead of handling long lengths of steel strip. Across narrow web, wide web, corrugated, battery, and coating and lamination operations, moving from steel to polymer is one of the simplest changes a plant can make to improve operator safety.

TruPoint blades are engineered for stiffness — resistance to bending under pressure — so the blade holds its shape against the anilox roll instead of deflecting as pressure and speed change. A blade that keeps its geometry keeps a consistent wiping edge, and a consistent wiping edge is what delivers repeatable ink and coating films from the first impression to the last. MicroTip edge technology sharpens that control further: the engineered tip presents a defined contact geometry to the anilox surface rather than the variable edge a steel blade develops as it wears, and it is available in M8 through M25 tip depths so the blade can be matched to the cell volume and the job. Bevel options of 15, 22, 30, and 45 degrees let the application team tune blade angle to press and substrate. The result is cleaner screens, sharper vignettes, and fewer density shifts over a long run.

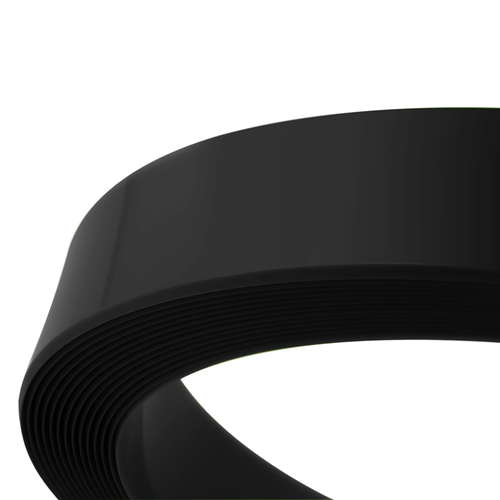

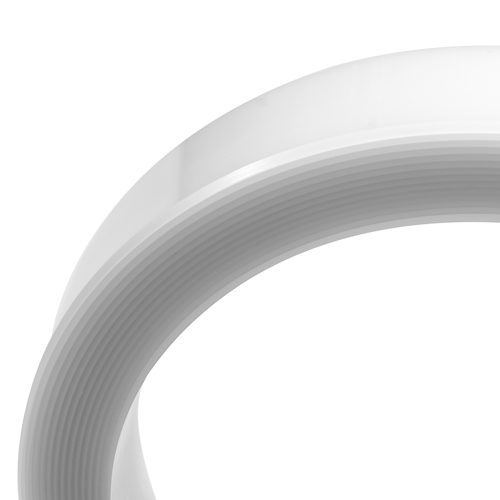

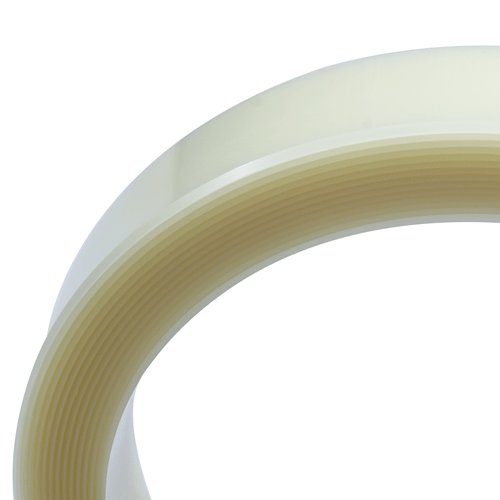

Doctor blade fatigue — more precisely creep — is what happens when a blade slowly loses stiffness under constant pressure, so the wiping edge relaxes away from the anilox and metering accuracy drifts even though the blade has not visibly worn out. It is a gradual failure, which makes it easy to miss: densities climb, screens begin to fill, and the operator compensates with more pressure, which accelerates both blade and anilox wear. TruPoint polymer blades are formulated to resist creep and hold their load-bearing geometry through long runs, so the metering edge set at makeready is close to the metering edge still working hours later. TruPoint Renew and TruPoint DuraPoint are built specifically for this: Renew is a stiff, durable blade that resists creep, and DuraPoint reinforces UHMW for extended durability in demanding corrugated and specialty work.

TruPoint blades meter ink and coatings by holding uniform edge contact along the full width of the anilox roll, so every cell is wiped the same way across the web. Uniform contact is what produces controlled film transfer: it clears the cell lands without digging into the cells, which prevents the excessive laydown that causes dot gain, fill-in, and drying problems downstream. Because the blade keeps its geometry rather than wearing to an uneven edge, the volume it meters at the start of a run is the volume it meters at the end, so operators spend less time adjusting pressure to chase density. Matching MicroTip depth to the anilox cell volume tightens that control further, and the right bevel for the press and substrate keeps the contact angle correct. Steadier metering means less ink consumed, less waste at makeready, and fewer sheets rejected for density variation.

Anilox rolls are scored by metal-on-metal friction. A steel doctor blade runs a hardened edge against a ceramic or chrome cell structure, and as that edge wears it becomes abrasive, cutting grooves and streaks into the engraving that no amount of cleaning will recover. TruPoint blades are made from non-abrasive polymer, so that metal-on-metal contact is removed entirely. The cell walls stay intact, the engraving holds its specified volume, and the roll keeps delivering the film it was built to deliver instead of drifting as it is damaged. Protecting the engraving protects a far more valuable asset than the blade: re-engraving or replacing a scored anilox roll is a much larger expense than the blades that protect it. Longer anilox life, fewer unplanned roll changes, and consistent print quality are the practical results of removing steel from the chamber.
